Item Dimensions
Cutting edge effective length (LE)
Insert width (W1)
Corner radius (RE)
Clearance Angle Major (AN)
Fixing hole diameter (D1)
Insert thickness (S)
Depth of cut maximum (APMX)
11.85
9.52
0.8
0 Deg
0
3.97
5.1
Chip Breaker
PM
• Semi Finishing chip breaker for general machining
• First choice for stable machining and light-to Mid, cutting conditions
• Smooth cutting due to positive chip breaker angles
recommended cutting conditions
P
M
K
S
H
N
Material
Steel
Stainles Steel
Cast Iron
Aerospace
High Hardness
Aluminium
Condition
Low Carbon
Alloy Steel
High Alloy
Austenitic
Duplex
Gray Cast Iron
High Strength Cast
Inconels Alloys
Titanium Alloys
High Hardness Alloy
Aluminium & Non Ferrous
Feed (Fz)
0.14
-
00
0.11
-
0.32
0.08
-
0.29
0
-
0
0
-
0
0.11
-
0.35
0.11
-
0.31
0
-
0
0
-
0
00
-
00
0
-
0
Speed (Vc)
110
-
190
110
-
190
90
-
170
0
-
0
0
-
0
110
-
190
110
-
170
0
-
00
00
-
00
0
-
0
0
-
0
Depth of cut
0.5
-
4
technical details
Workpiece Materials (TMC1ISO)
Chip Breaker (CBMD)
Grade
Substrate (SUBSTRATE)
Coating (COATING)
Cutting Edge Count (CEDC)
Insert Shape Code (SC)
Hand (HAND)
Operation Type (CTPT)
Insert Mounting Style Code (IFS)
Clearance Angle Major (AN)
Insert Size and Shape (CUTINT_SIZESHAPE)
P, M, K
PM
UN330
Sub-Micron
PVD AlTiN
8
Square
Right Hand
pre-machining with demand on surface
0 Deg
SNMX 09

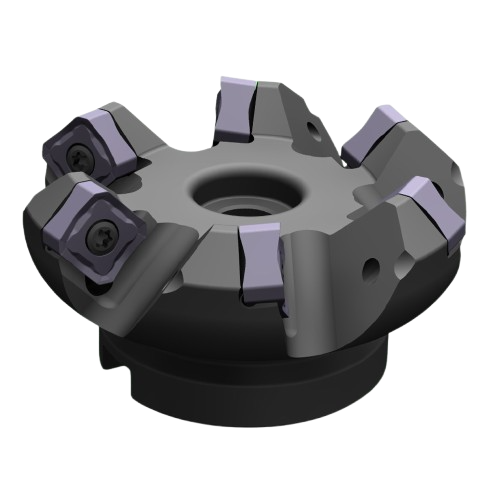

RELEVANT CUTTERS
2700000350
SN0904–FM–50–Z4–22
2700000352
SN0904–FM–63–Z6–22
2700000354
SN0904–FM–80–Z7–27
