Cutter Dimentions
Overall length (OAL)
Cutting diameter (DC)
Functional length (LF)
Radial rake angle (GAMF)
Axial rake angle (GAMP)
Insert seat (SSC_M)
49.95
40
2.8°
3°
9

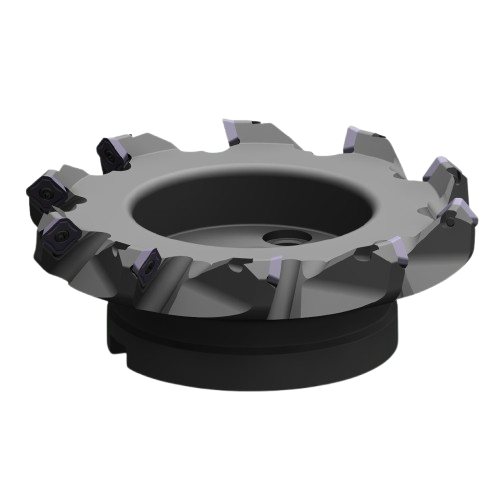

Item SKETCH
technical details
Tool cutting edge angle (KAPR)
Cutting item count(CICT_1)
Clamping type code(MTP)
Depth of cut maximum (APMX)
Working engagement ratio maximum(AERMX)
Maximum ramping angle (RMPX)
Maximum plunge depth(AZ)
Cutting pitch differential(CPDF)
Hand (HAND)
Coolant entry style(CNSC)
Connection diameter machine side(DCONMS)
Standard number(STDNO)
Standard letter(STDLET)
Torque(TQ)
Body material (BMC)
Weight of item(WT)
Connection - machine side(ADINTMS)
Z5
clamp with screw through hole
1.8
1
0°
0
No
Right
Non
22 mm
ISO6462
S
3.3Nm
Steel (42 Rc)
0.2Kg
Arbor -ISO 6462 -A (hexagon socket head cap screw) -metric: 22
ADDITIONAL CUTTERS
SD09T3–FM–50–Z5–22
2700000258
SD09T3–FM–63–Z5–22
2700000258
SD09T3–FM–80–Z7–27
2700000258
ACCESORIES
MOLICOT
TUBE
TORX
SCREWDRIVER
TORX
SCREWS
